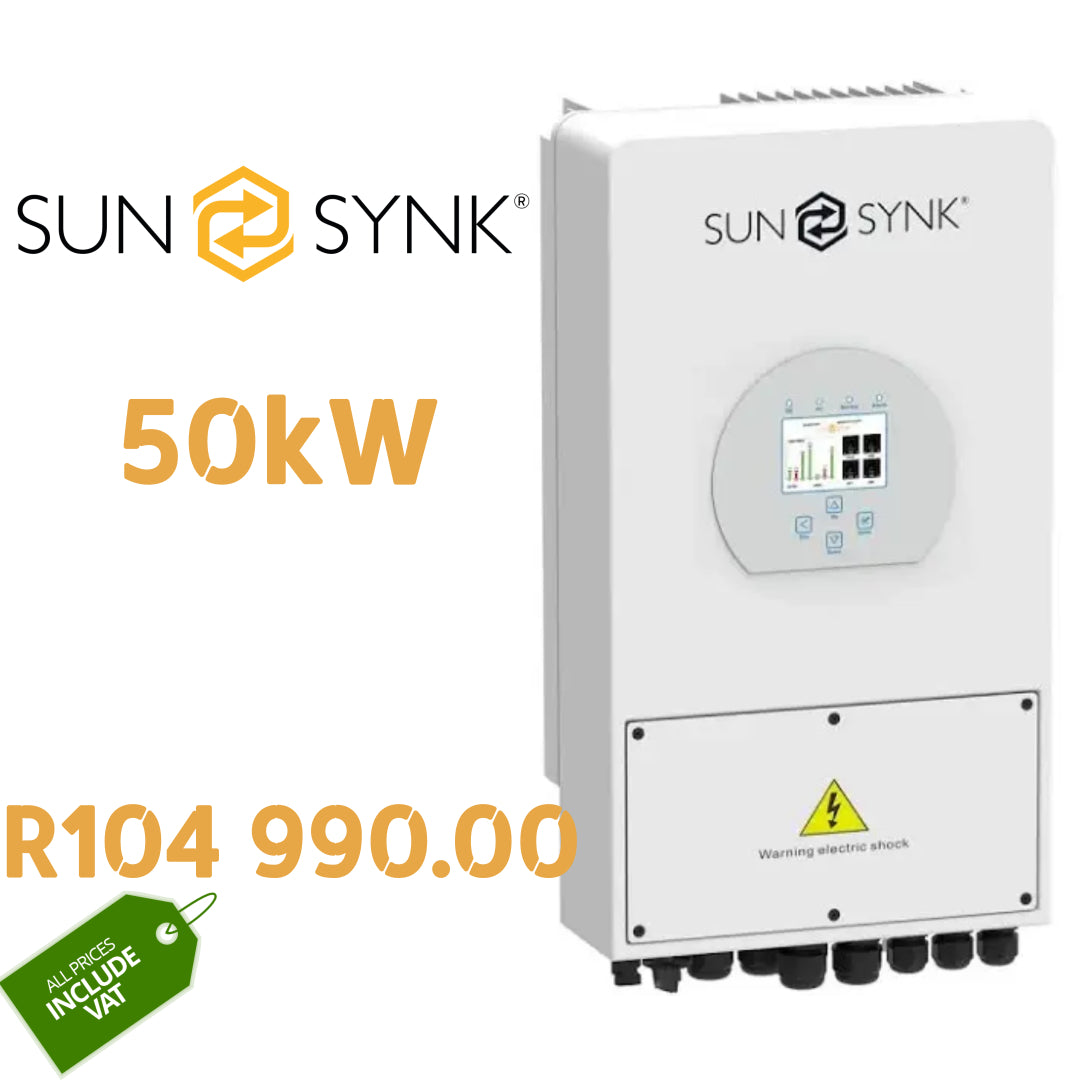

Sunsynk 50KW Three Phase Hybrid Inverter

Features:

• 100% unbalanced output, each phase; Max. output up to 50% rated power
• DC couple and AC couple to retrofit existing solar system
• Max. 10 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
• Max. charging/discharging current of 100A
• High voltage battery, higher efficiency
• 6 time periods for battery charging/discharging
• Support storing energy from diesel generator

Battery Input Data

• Battery Type: Li-lon
• Battery Voltage Range (V): 150-800V
• Max. Charging Current (A): 50A+50A
• Max. Discharging Current (A): 50A+50A
• Number of battery input: 2
• Charging Strategy for Lithium Battery: Self-adaption to BMS

PV String Input Data

• Max. DC Input Power (W): 65000W.
• Max. DC Input Voltage (V): 1000V
• Start-up Voltage (V): 150V
• MPPT Range (V): 200-850V.
• Full Load DC Voltage Range (V): 450-850
• Rated DC Input Voltage (V) 600
• PV Input Current (A): 36A+36A+36A+36A
• Max. PV ISC (A): 55A+55A+55A+55A
• No. of MPPT Trackers: 4
• No. of Strings Per MPPT Tracker: 2

AC Output Data

• Rated AC Output and UPS Power (W): 50000W
• Max AC Output Power (W): 55000W
• Peak Power(off-grid): 1.5 times of rated power, 10 S
• AC Output Rated Current(A): 75.8A
• Max.AC Current(A): 83.3A
• Max Continuous AC Pass-through(A): 150A
• Output Frequency and Voltage: 50/60Hz;3L/N/PE 220/380Vac，230/400Vac
• Grid Type: Three Phase
• DC injection current (mA): <0.5% 1n

Efficiency

• Max. Efficiency: 97.60%
• Euro Efficiency: 97.00%
• MPPT Efficiency: 99.90%

Protection

• PV Arc Fault Detection: Integrated (Except European Type)
• PV Input Lightning Protection: Integrated
• Anti -islanding Protection: Integrated
• PV String Input Reverse Polarity Protection: Integrated
• Insulation Resistor Detection: Integrated
• Residual Current Monitoring Unit: Integrated
• Output over Current Protection: Integrated
• Output Shorted Protection: Integrated
• Output over Voltage Protection: Integrated
• Surge protection: DC Type II / AC Type II

Certifications and Standards

• Grid Regulation: CEI 0-21, VDE-AR-N 4105, NRS 097, IEC 62116, IEC 61727, G99, G98, VDE 0126-1-1, RD 1699, C10-11
• Safety EMC/Standard: IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
• EMC: EN61000-6-1, EN61000-6-3, FCC 15 class B

General Data

• Operating Temperature Range ( C ): -40~60℃, >45℃ Derating
• Cooling: Smart cooling
• Noise (dB):  <45 dB
• Communication with BMS: RS485; CAN
• Weight (kg): 60
• Size (mm): 560.5W×837H×319D
• Protection Degree: IP65
• Installation Style: Wall-mounted
