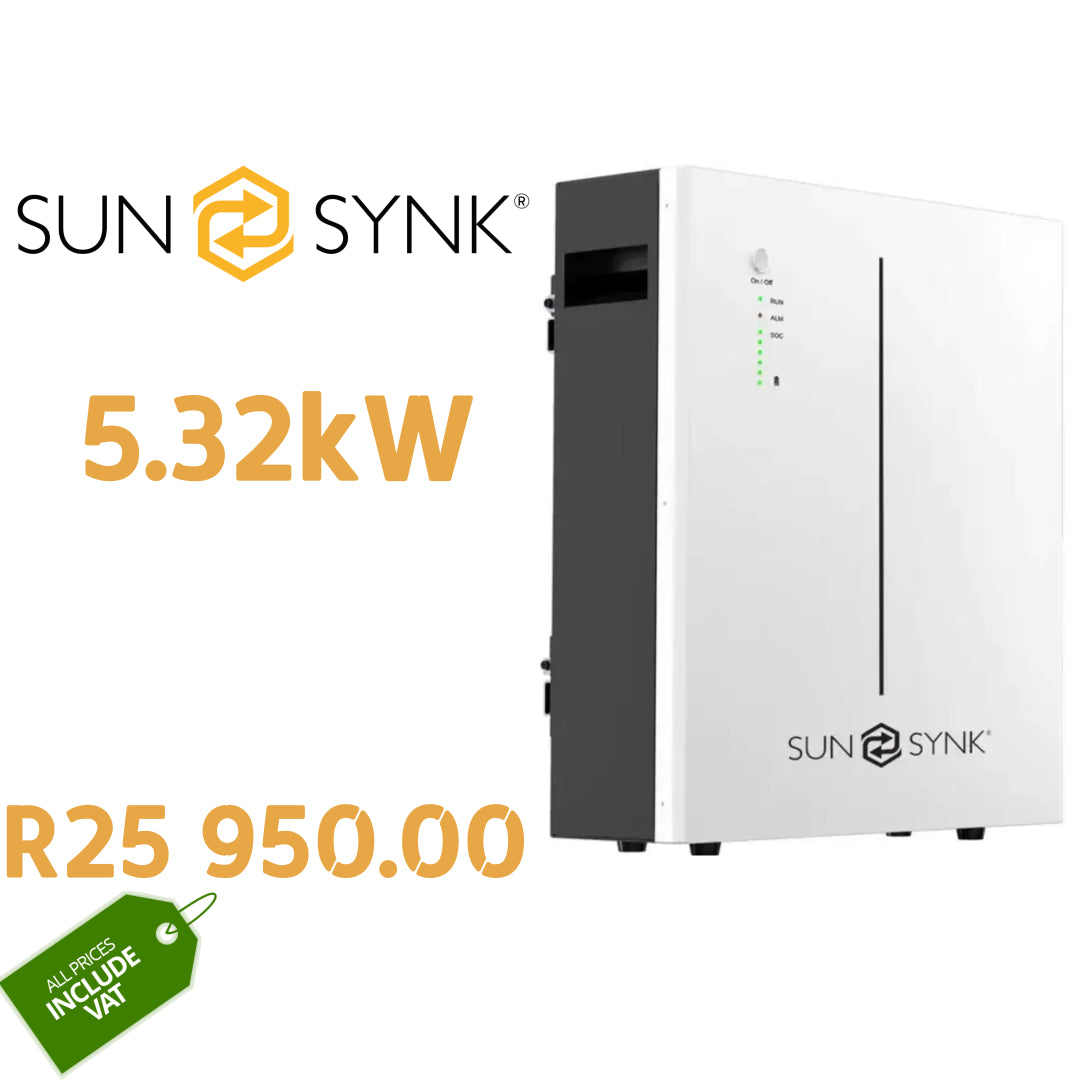

Sunsynk 5.32kW Lithium Ion Battery Wall Mount

Sunsynk 5.32kW Battery Wall Mount

SUN-BATT-5.32 is a lithium battery with an operating voltage range of 45.6-56.16V and is designed for residential energy storage applications. Not suitable for life-sustaining medical devices, this battery features a BMS which manages and monitors cells info (including voltage, current and temperature) and balances cells charging to optimize cycle life.

Additionally, BMS has protective functions (e.g. over-dis- charge, over-charge, over-current and high/low temperature) and can automatically manage charge, discharge and balance. Parallel connection of up to 8 SUN-BATT-5.32 devices is possible.

• More Usable Energy  -  100% Depth of Discharge.
• Flexible Investment  -  Scalable from 5.32 to 42.56 kWh
• Safe & Reliable  -  Premium Lithium Iron Phosphate(LFP) 6000 cycles.
• Easy Installation  -  Floor Stand or Wall Mounted.
• Perfect Compatibility  -  Compatible with Major PCS Brand.
• Quick Commissioning  -  One Button ON/OFF Automatic ID Assignment.

Specifications:

•  Nominal Voltage - 51.2Vdc
• Nominal Capacity - 104Ah
• Battery Energy1 - 5320Wh
• Charge Voltage - 55.68~56.16Vdc
• Discharge Voltage - 45.6-56.16Vdc
• Nominal Charge/Discharge Current - 50A
• Nominal Charge/Discharge Power - 2500W
• Max Charge / Discharge Current - 100A
• Max Charge / Discharge Power - 5000W
• Short Circuit Current - 350A
• Communication - RS232, RS485, CAN
• Dimension( W×D×H mm ) - 450×150×533mm
• Weight (Kg) - 45kg
• Working Temperature2 -  -20ºC ~ 60ºC
• Cell Technology - LiFePO4, Lithium-iron Phosphate
• Cycle life3 -  6000 Cycles @ 80% DOD / 25ºC / 0.5C, 60% EOL
• Scalability  -  Max 8 batteries in parallel

*For more information about the product, warranties or if you need a datasheet on this product, please send us an email at sales@powerhousedistributors.co.za
