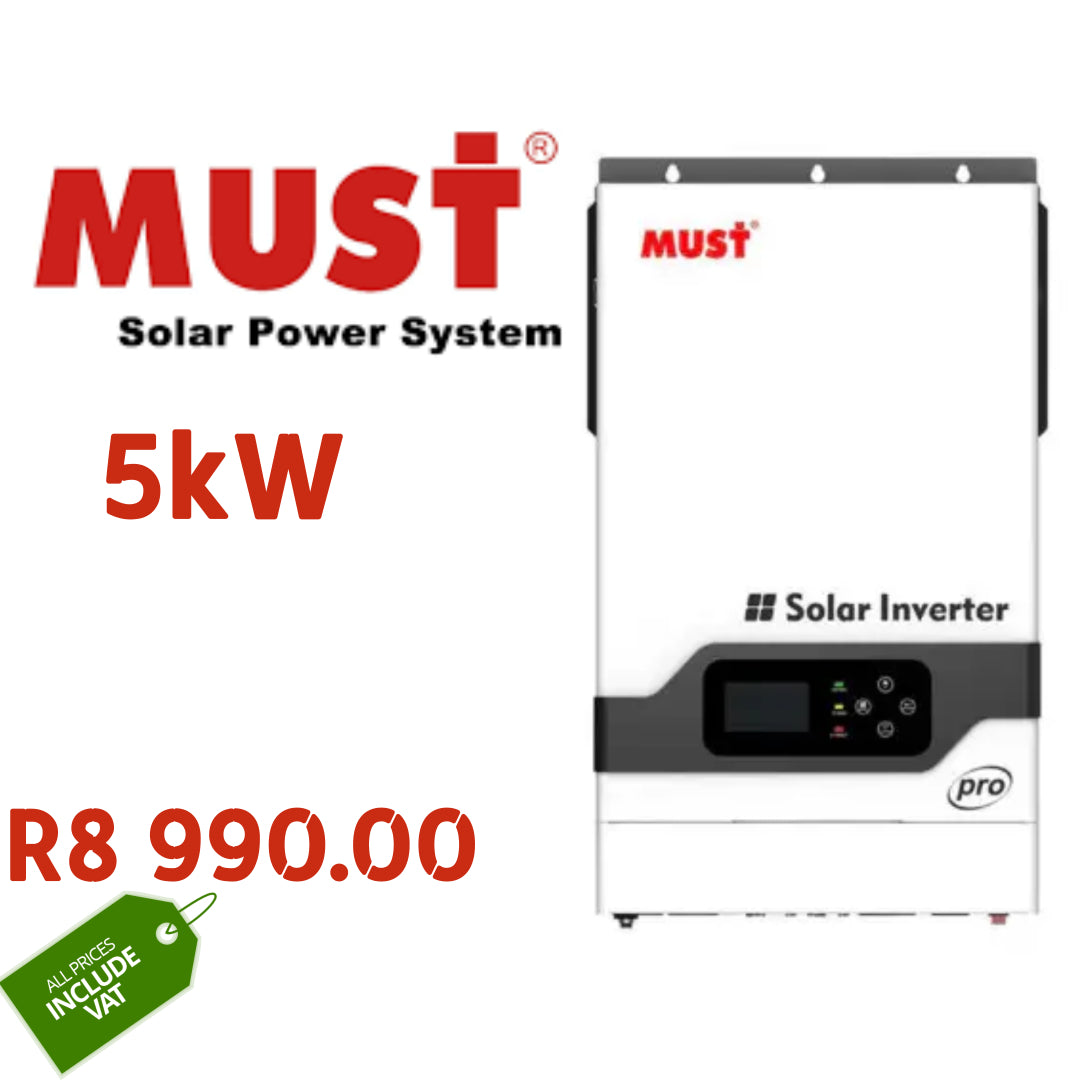

Must 5KW 48V/60A Pure Sine Wave Hybrid Inverter

General Data:

Hybrid Inverter 48V 5.2KVA / 5000W 100A MPPT Solar Inverter -MUST

PV1800PRO is a multi-function inverter/charger, combining functions of inverter, MPPT solar charger and battery charger to offer uninterruptible power support in portable size. PV1800 PRO Series can run without battery. The Maximum PV array open circuit voltage can reach 450V and MPPT voltage is 150~430Vdc, which Can help customers make full use of solar energy.

You can choose which priority you want to charge your loads / battery whether it Solar or Grid or both

• Pure sine wave output
• Built-in 80A MPPT solar charge controller
• MAX PV Array Open Circuit Voltage: 450V
• (do no support parralel)
• High Frequency

The Maximum PV array open circuit voltage can reach 450V and MPPT voltage is 150~430Vdc, which can help you make full use of solar energy.
This inverter can provide power to the loads without a battery

Features:
- Pure sine wave output
- Smart LCD setting (Working modes, Charge Current, Charge Voltage, etc).
- Built-in MPPT solar charge controller
- MAX PV Array Open Circuit Voltage: 450V
- Can provide the power to the load without battery
- Combining solar system, AC utility, and battery power source to supply continuous power
- Overload, short circuit and Deep discharge protection
- Cold start function
- Support USB, RS485 monitoring function
- WIFI remote monitoring (Purchase WIFI Dongle Separately)

Specifications:
- Rated Power 5200VA/5200W
- Input Voltage 230 VAC
- Frequency Range 50 Hz/60 Hz (Auto sensing)

Output
- AC Voltage Regulation (Batt. Mode) 230VAC 5 %
- Surge Power 10400W
- Efficiency (Peak) 93 %
- Transfer Time 10 ms (For Personal Computers), 20 ms (For Home Appliances)
- Waveform: Pure sine wave

Battery & AC Charger
- Battery Voltage 48 VDC
- Floating Charge Voltage 54.8 VDC
- Overcharge Protection 60 VDC
- Maximum Charge Current 80 A

Solar Charger
- Maximum PV Array Open Circuit Voltage 450 VDC
- Maximum Charging Current 80A

Dimensions : L 62cm X W 42cm X H 29cm

*For more information about the product, warranties or if you need a datasheet on this product, please send us an email at sales@powerhousedistributors.co.za
