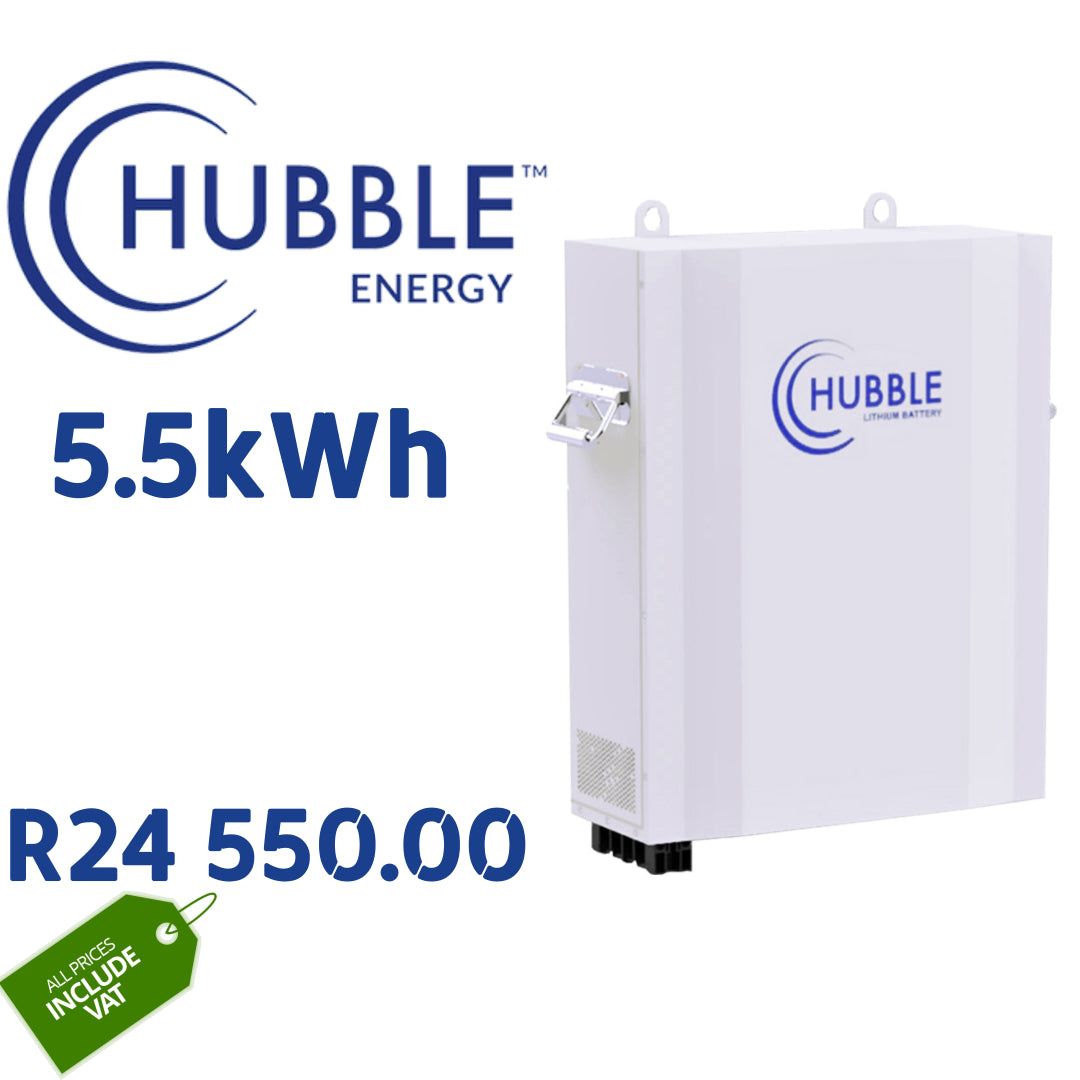

Hubble AM-2 Lithium Battery 5.5kWh 48v - Wall Mountable
The Hubble AM-2 Lithium Battery 5.5kWh 48V is an excellent choice for your loadshedding setup. With a high cycle and service life, this wall mountable battery provides 5.5kWh of power storage and is capable of giving you worry free power for years to come.
Features:
Low self discharge
High cycle and service life
Easy wall mount or shelf rack installation
Excellent high temperature performance
Advanced BMS with current limiting function
Compatible with most inverters and chargers
High energy density and conversion efficiency
Cloudlink integration ready for WIFI monitoring
Complete with integrated Battery Management System
Heavy duty side handles for easy handling and mounting on the wall
Built in protection for over-charge, over-discharge & over-temperature
CAN Bus, fully integrates and communicates with leading Inverter brands
Technical Specifications:
Rated Capacity (5HR): 116Ah
Nominal Voltage: 48V
Design Capacity: 5.5kWh
Equalised Charge Voltage: 53.8V
Max. Continuous Charging Current: 105A
Max. Continuous Discharging Current: 105A
C Rating: 1.0C
Weight: Approx. 42kg
Display: None
Parallel: Parallel connection up to 15 packs with full communications
Dimensions (WxDxH): 375mm x 145mm x 467mm
Ports: 1 x CAN-bus, 2 x Battery Link Ports
Cells: New Li-ion Prismatic Cells
Design Life: ± 15 years
Cycle Life @ 1C: +/- 6000 cycles @ 50% DOD, Above 3000 cycles @ 100% DOD
Certification: CE, UN38.2, GBT31484-2015, GBT31485-2015, GBT31486-2015
Outer Package Material: White Bake Lacquer Steel Case
Operating Temperature
Charging: 0°C to 55°C
Discharging: -20°C to +55°C
Storage: -20°C to +55°C
Protection: Electronic Circuit Breaker, BMS Voltage Protection, Current Limiting
Warranty:
10-year warranty
*For more information about the product, warranties or if you need a datasheet on this product, please send us an email at sales@powerhousedistributors.co.za
